PREVENTIVE RATHER THAN CURATIVE

BatterySort prevents major fires in recycling plants

Electrocycling gmbh logo
powered by Telekom logo
Meilo Logo.png
Lobbe logo

Only smarter in hindsight?

With WeSort.AI and our BatterySort, this won't happen to you. With the help of artificial intelligence, our BatterySort sorting system is able to detect and sort out lithium-ion batteries in your recycling facilities. The key point is that this happens BEFORE the lithium-ion batteries pass through the system damaged and can then cause huge damage.

Take precautions!

You have the chance NOW to take preventive action and avoid fire hazard situations.

50 Mn. €

Large fires often result in total loss. Protect your waste sorting systems.

Damage

€300,000

Enormous cost-saving potential arises from optimized insurance policies and their annual premium rates as well as from prevented fire damage.

Savings potential

365 days

Quiet and carefree time - for everyone involved.

carefree

INSIGHTS INTO THE MACHINE

BatterySort in action

NO MAGIC

The LI batteries are discovered by artificial intelligence

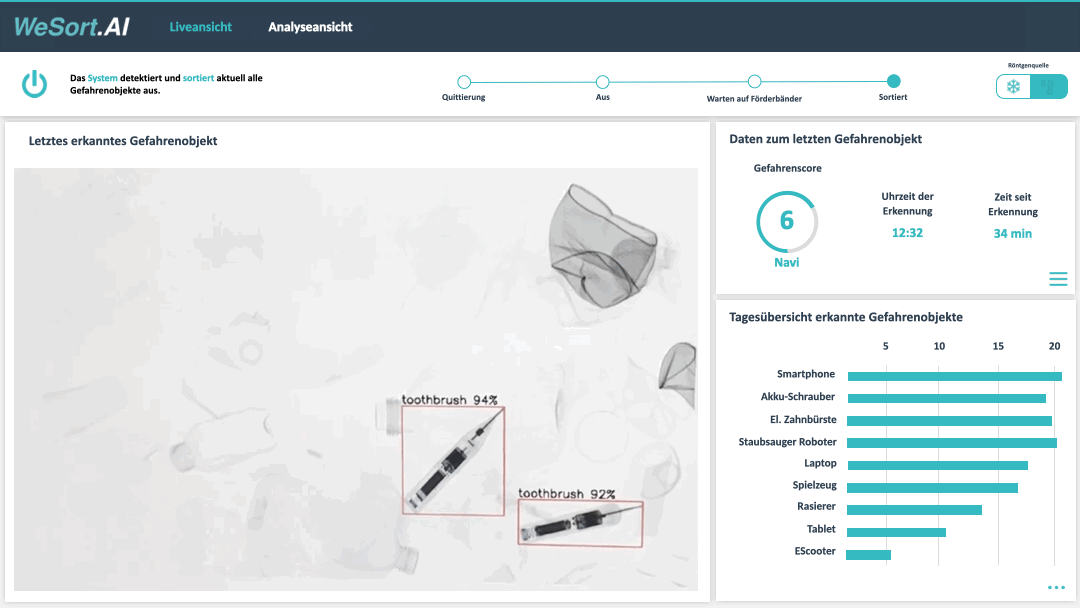

BatterySort dashboard with hazard object detection

BatterySort is installed at the earliest possible and technically feasible point, i.e. directly after the pre-shredder in the sorting system. Input streams with a layer thickness of up to 50 cm are detected by an X-ray scanner. Special AI algorithms detect individual batteries and devices containing lithium-ion batteries with a high degree of reliability. Interfering objects such as steel parts, stones or spray cans can also be detected.



The detected devices are shot out precisely with very powerful air pressure nozzles. An acceleration belt triples the speed to minimize by-catch. A special discharge conveyor transports the absorbed devices out of the hall. There they are collected in a fireproof container. There, the impurities can be sorted and recycled.



In principle, the system is suitable for all waste streams. The primary areas of application are currently sorting plants for lightweight packaging (LVP), commercial waste, paper, old electrical appliances and household waste.

  • Spacious interior to avoid possible blockages at all costs

  • Minimum distance between conveyor belt and ceiling of over one meter

  • System length 8 m

  • Active conveyor width of up to 2.5 m

  • Belt speed 2.5 m/s

  • Deflection capacity of the air pressure nozzles up to 3.5 kg

  • X-ray transmission technology

  • TÜV-approved as a quasi-full protection device

  • Mechanical folding mechanism for the nozzle bar

THE MOST IMPORTANT SYSTEM PARAMETERS

The BatterySort isgood dthoughtful insein construction.

IMG_6409 2_corr-with-drill.png

NO LUKEWARM AIR

Air pressure nozzles with extra power reliably discharge LI batteries.

Powerful air pressure nozzles, which are also used in mining, enable reliable sorting.

These high-performance nozzles can be used to blow lithium-ion batteries and electrical appliances weighing up to 3.5 kg off the belt, e.g. e-bike batteries, laptops or robot vacuum cleaners.

The sorted batteries and devices are transported out of the hall and collected in a fireproof container.

False rejects, i.e. the number of incorrectly sorted objects, are reduced to a minimum with a belt speed of 2.5 m/s. The layer thickness is reduced by two thirds in height, e.g. from 30 cm to 10 cm.

DEEP INSIGHTS!

All the facts about BatterySort compact in a product brochure.

We will be happy to send you all the information conveniently and compactly summarized for you.



Request your copy and receive additional, more detailed insights into our product.


WHAT IS NOT CREATED CANNOT DO ANY HARM.

Many advantages through a little precaution with BatterySort.

01

Active fire prevention

Thermal cameras react when damage is already caused by fire. BatterySort acts before fire and damage occur.

02

No costs and no hassle

Major fires that BatterySort prevents can result in losses of up to €50 million. Enormous costs and trouble are avoided. Even minor fire damage, which averages €200,000 per year and system, is avoided with BatterySort.

03

Lower insurance costs

A not insignificant side effect is the minimization of insurance premiums. In the case of group insurance, the cost savings amount to around € 180,000 per year.

04

Reputation and image secured

It is not possible to put an exact figure on the downtime costs and image damage caused by fires, but they are no less important.


BATTERYSORT, REAL ADDED VALUE!

Sustainability for the environment and companies

Recycling batteries on a treadmill

Thanks to the possibility of improved separation, new recycling cycles are being established. Lithium-ion batteries, electronics, circuit boards, rare earths, etc. are given a second life.

This offsets the increasing demand for rare raw materials such as lithium for electromobility.

It also minimizes the negative impact on the environment caused, for example, by the mining of raw materials such as lithium.

Screenshot 2023-05-19 at 12.18.50.png

 COLLECT:

Valuable knowledge from your valuable data!

AI enables you to monitor processes in real time.

The stored data contributes to the analysis and optimization of your recycling cycles.

Providing reliable proof of success rates to insurance companies, authorities and customers is child's play.

You can identify potential and trends that help to increase your recycling rates and sales.


Arrange an online demo or visit us on site at our technical center in Würzburg!
